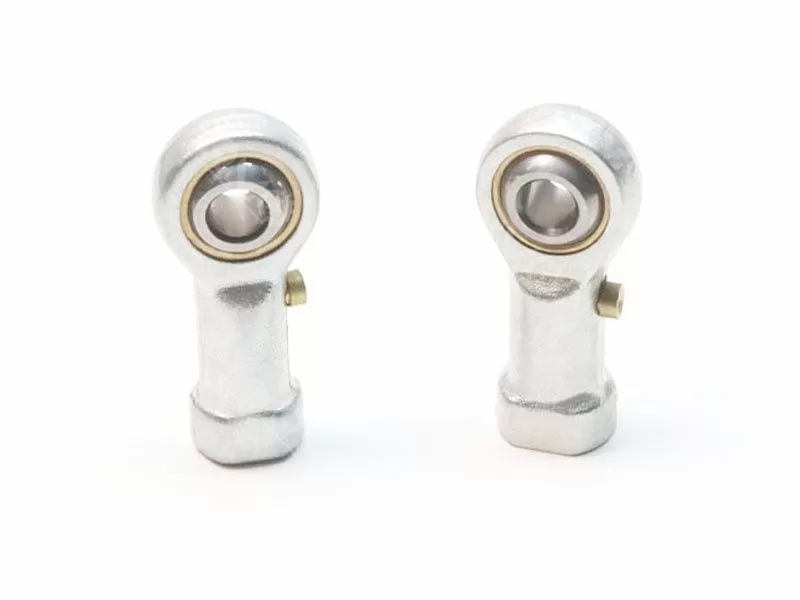

Rod End Bearings
Rod body with left or right-hand female thread, sliding contact surfaces: steel/PTFE. surface of rod body zinc plated.

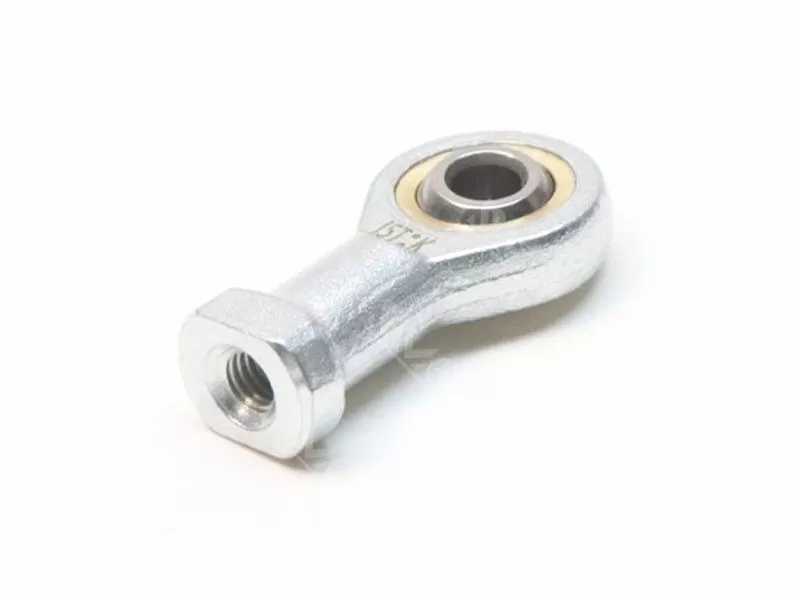

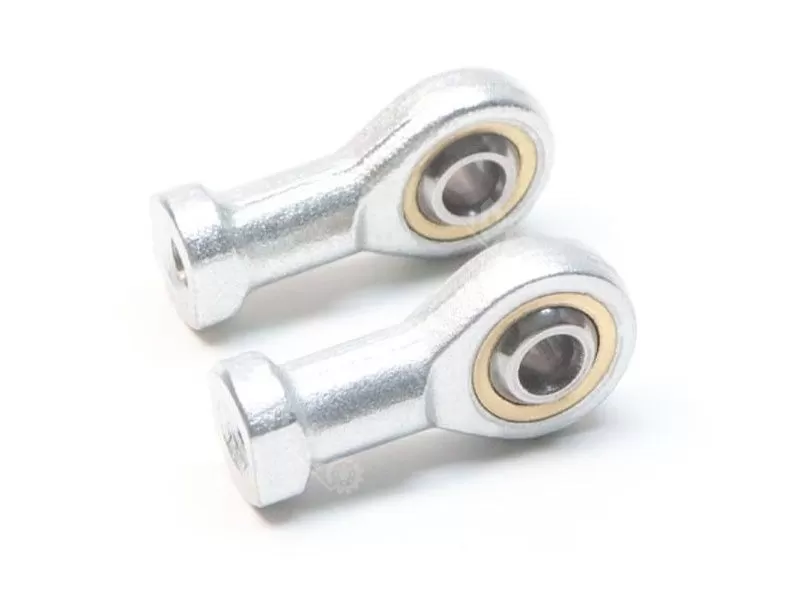

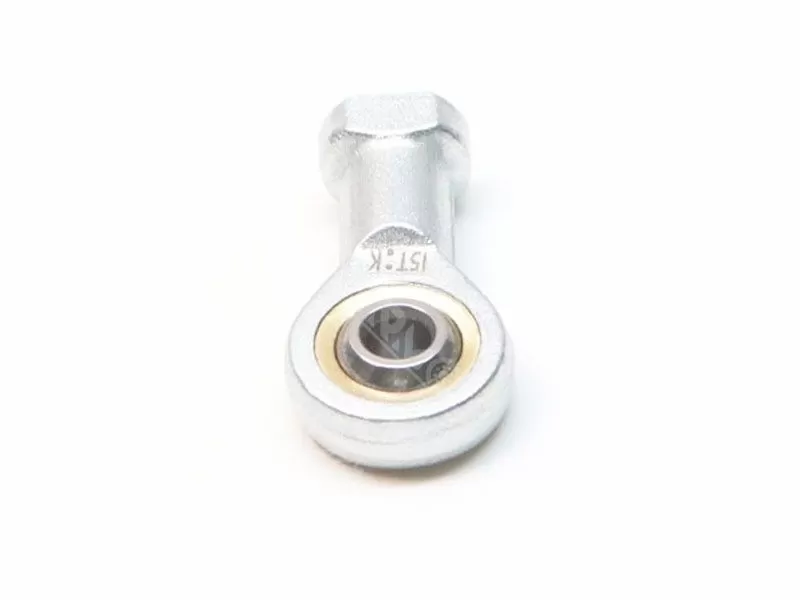

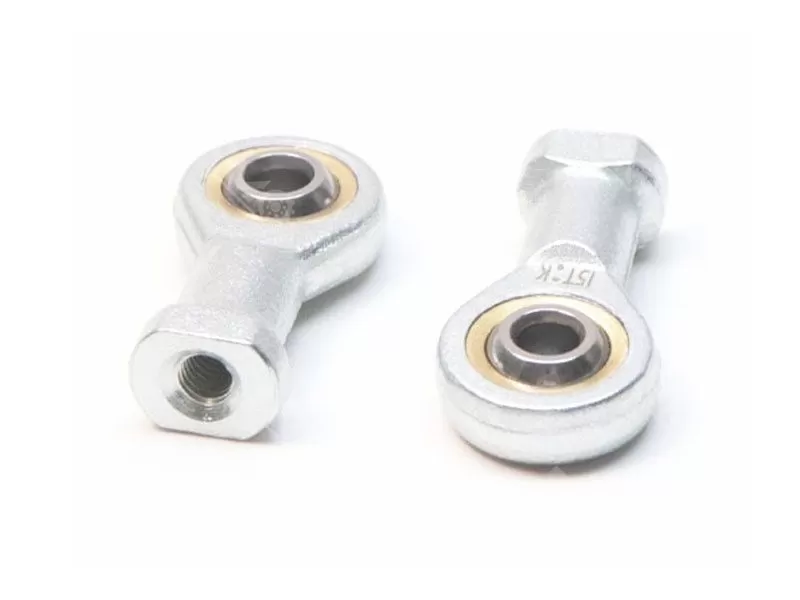

Product name: SI5T/K SIL5T/K rod end bearing

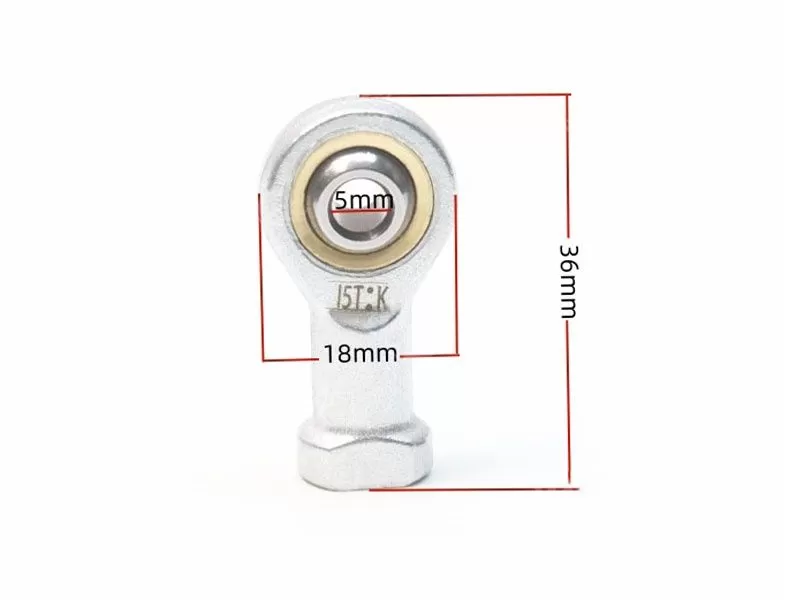

Size: 5x18x36x9mm
Material: steel/PTFE with zinc plated
weight: 0.0175KG
Lead time: normally 3-5 days
Specification
Package: single box+Carton+Pallet
MOQ: 100 PCS
Shipping Port: Guangzhou, Ningbo, Shanghai
Payment: 100% T/T or 30% T/T before production, 70% before delivery
Rod end joint bearing is a joint bearing with a rod end or mounted on the rod end, which belongs to a class of joint bearings.
Surface phosphating, galvanized, chromium-plated or outer sliding surface lining, inserts, spraying, etc. Therefore, it has a large load capacity and impact resistance, and has the characteristics of corrosion resistance, wear resistance, self-aligning, good lubrication or self-lubrication without lubricating dirt pollution, and can work normally even if the installation is misplaced. Therefore, joint bearings are widely used in low speed swing motion, tilt motion and rotary motion.
Application: Joint bearing is widely used in engineering hydraulic cylinder, forging machine tool, engineering machinery, automation equipment, automobile shock absorber, hydraulic machinery and other industries.
Related Products
 型号MODEL NO. | 主要尺寸 MAIN DIMENSIONS (mm) | 基本额定载荷 | 重量 | ||||||||||||||
| BASIC LOAD RATING | WEIGHT | ||||||||||||||||

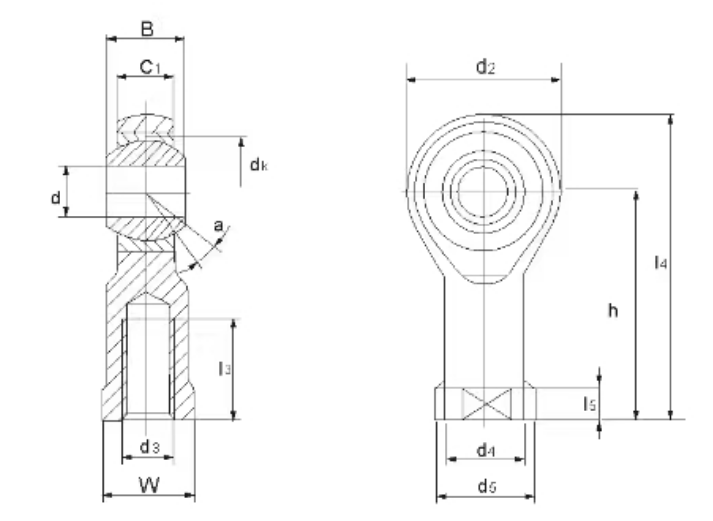

| d | d3 | W | B | C1 max | h | d2 max | I4 max | I5 max | d4 max | d5 max | dk | I3 min | a' ≈ | 动 Dynamic C(kgf) | 静 Static Co(kgf) | (kg) | |
| SI3T/K | 3 | M3x0.5 | 5.5 | 6 | 4.5 | 21 | 12 | 27 | - | 5 | 6.5 | - | 10 | - | 1.8 | 3.58 | 0.006 |
| S14T/K | 4 | M4x0.7 | 8 | 7 | 5.3 | 24 | 14 | 31 | - | 7.8 | 9.5 | - | 12 | - | 3.2 | 4.9 | 0.009 |
| SI5T/K | 5 | M5x0.8 | 9 | 8 | 6 | 27 | 18 | 36 | 4 | 8.5 | 12 | 11.11 | 8 | 13 | 3.25 | 5.7 | 0.016 |
| SI6T/K | 6 | M6x1 | 11 | 9 | 6.75 | 30 | 20 | 40 | 5 | 10 | 13 | 12.7 | 9 | 13 | 4.3 | 7.2 | 0.027 |
| SI8T/K | 8 | M8x1.25 | 14 | 12 | 9 | 36 | 24 | 48 | 5 | 12.5 | 16 | 15.875 | 12 | 14 | 7.2 | 11.6 | 0.047 |
| SI10T/K | 10 | M10x1.5 | 17 | 14 | 10.5 | 43 | 28 | 57 | 6.5 | 15 | 19 | 19.05 | 15 | 13 | 10 | 14.5 | 0.077 |
| SI12T/K | 12 | M12x1.75 | 19 | 16 | 12 | 50 | 32 | 66 | 6.5 | 17.5 | 22 | 22.225 | 18 | 13 | 13.4 | 17.0 | 0.115 |
| SI14T/K | 14 | M14x2 | 22 | 19 | 13.5 | 57 | 36 | 75 | 8 | 20 | 26 | 25.4 | 21 | 16 | 17 | 24.0 | 0.17 |
| SI16T/K | 16 | M16x2 | 24 | 21 | 15 | 64 | 40 | 84 | 8 | 22 | 28 | 28.575 | 24 | 15 | 21.6 | 28.5 | 0.23 |
| SI18T/K | 18 | M18x1.5 | 27 | 23 | 16.5 | 71 | 44 | 93 | 10 | 25 | 31 | 31.7 | 27 | 15 | 26 | 42.5 | 0.32 |
| SI20T/K | 20 | M20x1.5 | 30 | 25 | 18 | 77 | 48 | 101 | 10 | 27.5 | 35 | 34.925 | 30 | 14 | 31.5 | 42.5 | 0.42 |
| S122T/K | 22 | M22x1.5 | 32 | 28 | 20 | 84 | 54 | 111 | 12 | 30 | 38 | 38.1 | 32 | 15 | 38 | 57.0 | 0.54 |
| SI25T/K | 25 | M24x2 | 36 | 31 | 22 | 94 | 60 | 124 | 12 | 33.5 | 42 | 42.85 | 36 | 15 | 47.5 | 68.0 | 0.75 |
| S128T/K | 28 | M27x2 | 41 | 35 | 24 | 103 | 66 | 136 | 14 | 37 | 46 | 47.6 | 41 | 15 | 55 | 75.5 | 0.82 |
| SI30T/K | 30 | M30x2 | 46 | 37 | 25 | 110 | 70 | 145 | 15 | 40 | 50 | 50.8 | 45 | 17 | 64 | 88.0 | 1.3 |
