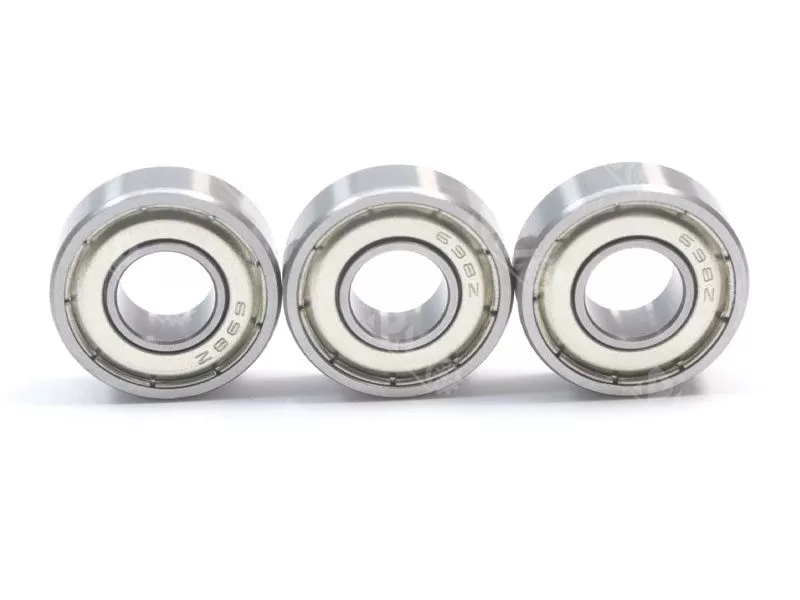

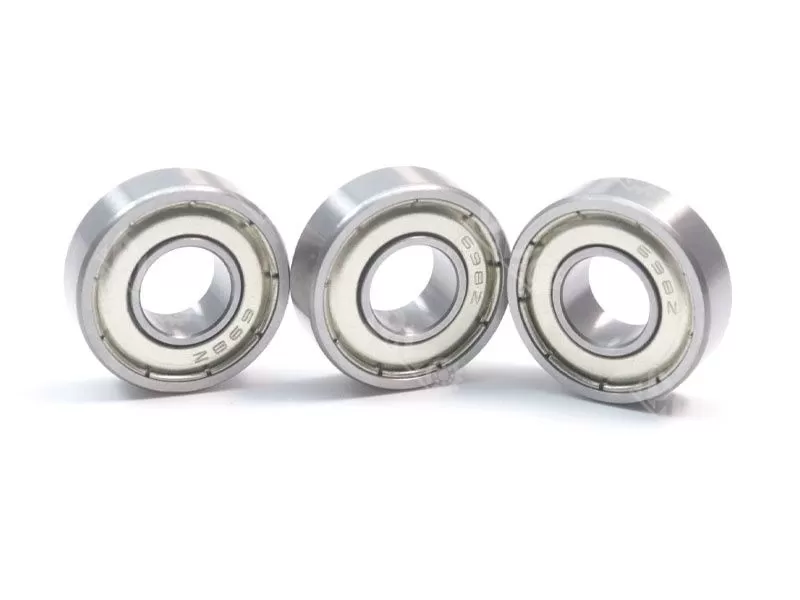

698ZZ high precision P6 grade small deep groove ball bearing

The deep groove ball bearing is composed of an outer ring, an inner ring, a set of steel balls and a set of cages.


Model No.: 619/8-2Z/698ZZ

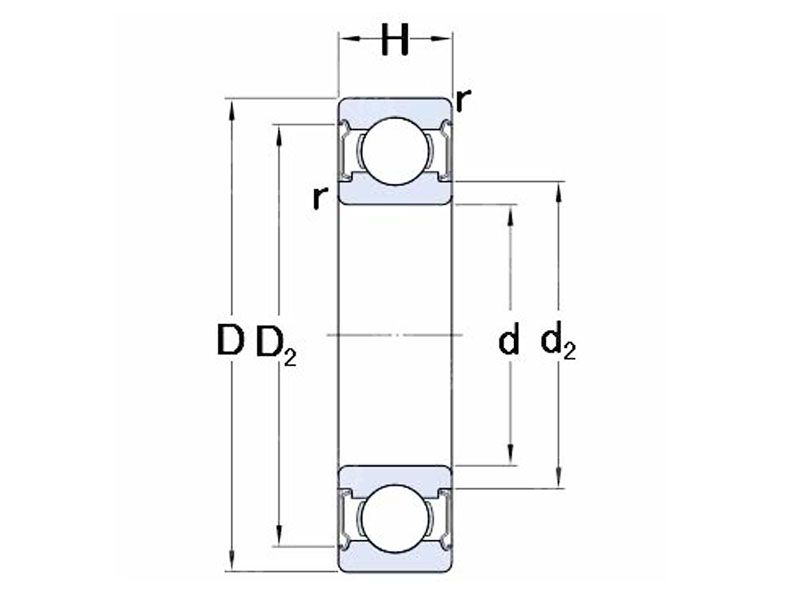

Size: 8X19X6mm

Weight: 0.0071KG

Branding: famous brand/RMO/Neutral/OEM&ODM

Sealing: OPEN, ZZ, 2RS

Material: chrome steel GCR15, stainless steel (420 440C 304 316), carbon steel etc.

Lead Time: normally 3-5 days


Specification

Precision: p0  p6  p5  p4

Clearance: C2  C0  C3  C4

Vibration: Z1V1, Z2V2, Z3V3

Cage material: Steel, nylon, copper

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T, or 30% T/T in advance ,70% T/T after finished production


Miniature deep groove ball bearing:

There are many types of miniature deep groove ball bearings, including the metric 68 series, 69 series, 60 series, etc., as well as the British R series. In addition, different types of ‌ with ZZ steel dust cover, RS rubber seal ring and flange flange can be selected according to requirements.


The main materials are carbon steel, bearing steel, stainless steel, plastic, ceramic and so on. The choice of these materials directly affects the performance and service life of bearings. For example, bearing steel has good comprehensive mechanical properties and wear resistance, stainless steel is suitable for wet or corrosive environments, and ceramic materials are suitable for high temperature, high speed and high load occasions.


Main uses:

It is suitable for all kinds of industrial equipment, small rotary motor and other high speed and low noise fields, such as: office equipment, micro motor, instrumentation, laser engraving, small clock, soft drive, pressure rotor, dental drill, hard disk motor, stepper motor, video recorder magnetic drum, toy model, computer cooling fan, money counter, fax machine and other related fields.




Related Products

Bearings No.ID(d*D*B)mmWeight (KG)Bearings No.ID(d*D*B)mmWeight (KG)
6911*4*1.60.00036911ZZ55*80*130.133
692ZZ2*6*30.00056912ZZ60*85*130.185
693ZZ3*8*40.00086913ZZ65*90*130.193
694ZZ4*11*40.0026914ZZ70*100*160.211
695ZZ5*13*50.0026915ZZ75*105*160.342
696ZZ6*15*50.0026916ZZ80*110*160.363
697ZZ7*17*50.0046917ZZ85*120*180.382
698ZZ8*19*60.0056918ZZ90*125*180.535
699ZZ9*20*60.0086919ZZ95*130*180.565
6900ZZ10*22*60.0096920ZZ100*140*200.785
6901ZZ12*24*60.0096921ZZ105*145*200.816
6902ZZ15*28*70.0116922ZZ110*150*200.849
6903ZZ17*30*70.0166924120*165*221.15
6904ZZ20*37*90.0186926130*180*241.52
6905ZZ25*42*90.0366928140*190*241.62
6906ZZ30*47*90.0426930150*210*282.47
6907ZZ35*55*100.0486932160*220*282.61
6908ZZ40*62*120.0746934170*230*282.746
6909ZZ45*68*120.1126936180*250*334.76
6910ZZ50*72*120.1326938190*260*334.98
