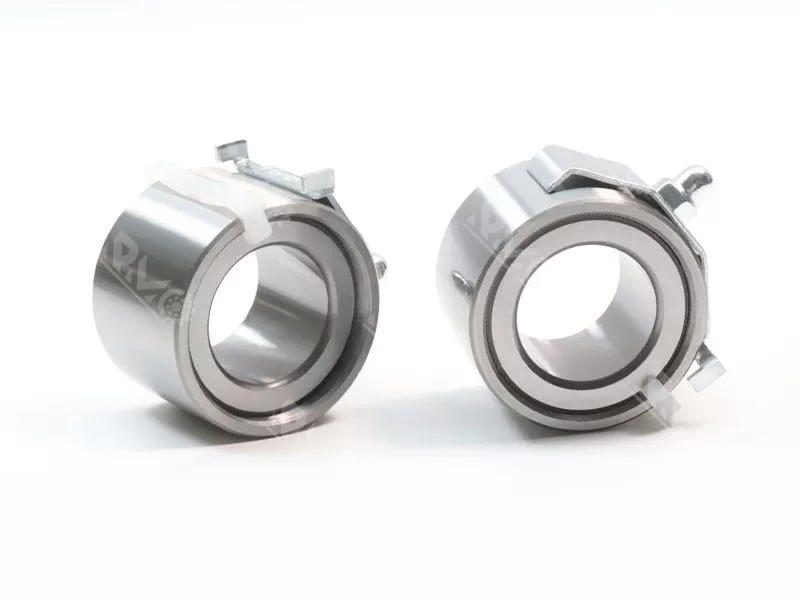

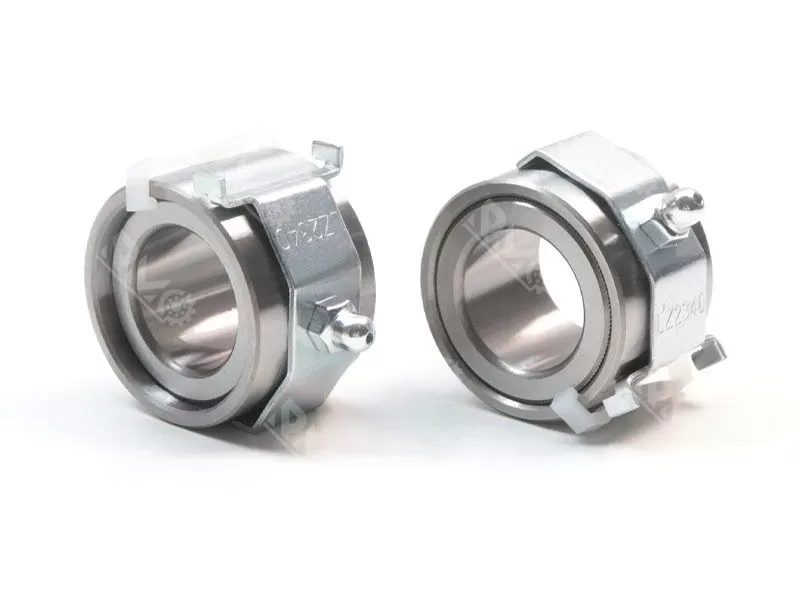

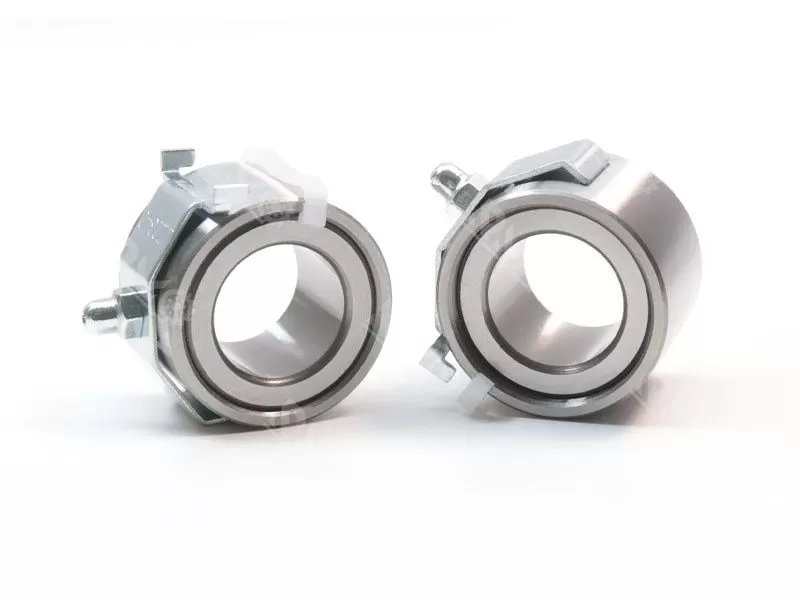

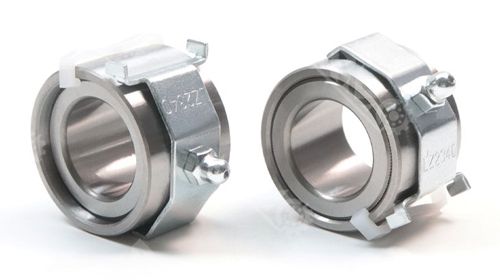

LZ2340 LZ series bottom roller bearings

It consists of an inner and outer sleeve and a roller.


Product name: LZ2340 bottom roller bearing

Size: 23x40x23.5x27mm

Material: chrome steel Gcr15 with nylon cage

weight: 0.16KG

Lead time: normally 5-7 days

Specification

Package: single box+Carton+Pallet

MOQ: 100 PCS

Shipping Port: Guangzhou, Ningbo, Shanghai

Payment: 100% T/T or 30% T/T before production, 70% before delivery


‌roller bearing ‌: is a rolling element to reduce mechanical friction and improve mechanical efficiency of the bearing. It is composed of an inner and outer sleeve and a roller, the roller can be rolled between the inner and outer sleeve, so that the bearing has the functions of support, rotation and positioning.


Technical parameters: The technical parameters of roller bearings include radial clearance between 0.003 and 0.020mm, axial clearance ≤0.060 mm, and radial circular runout tolerance value ≤0.005 mm. These parameters ensure the stability and durability of bearings at high speeds.


Its features include:

1. High carrying capacity: Through the rolling structure, the roller bearing can withstand greater loads, while the rolling friction is small, so it has higher carrying capacity.

2. Wide range of application: suitable for high-speed operation and high load conditions of mechanical equipment, such as steel, mining, metallurgy, power generation, construction machinery, etc.

3. High precision: After precision machining, it has high matching accuracy and rotation accuracy, which can meet the requirements of precision machinery and equipment.

4. Easy installation and maintenance: simple structure, easy to install and maintain.


Application: Roller bearings are mainly used in textile machinery, especially in the twisting roving frame and spinning frame drafting mechanism of cotton, wool, hemp, silk, chemical fiber pure spinning and blending.

Related Products

Bearings NO.ID(d*D*B)mmWeight (KG)Bearings NO.ID(d*D*B)mmWeight (KG)
UL28-000359016.5*28*19*230.059LZ280016.5*28*19*220.06
UL30-000787118.5*30*19*220.065LZ282216.528**19*220.06
UL30-000366518.5*30*19*220.065LZ2822E16.5*28*19*230.061
UL30-002827618.5*30*19*220.064LZ320019*32*20*230.082
UL32-001340019*32*20*240.079LZ322419*32*20*230.082
UL32-001514319*32*20*240.079LZ3224E19*32*20*240.082
UL32-001654821*32*19*230.068LZ322619*32*20*230.082
UL32-001916918.5*32*19*220.1LZ360021*36*22*250.119
UL32-002311416.295*32*200.1LZ362421*36*22*250.119
UL36-001478218.5*35*19*220.107LZ362621*36*22*250.119
UL36-001644221*36*22*260.125LZ234023*40*23.5*270.16
UL40-002540822.984*40*240.135LZ402423*40*23.5*270.16
