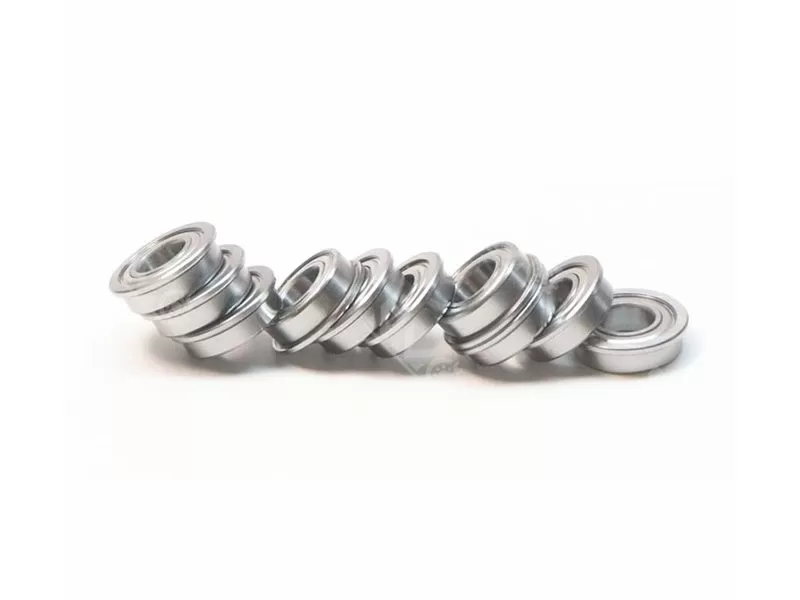

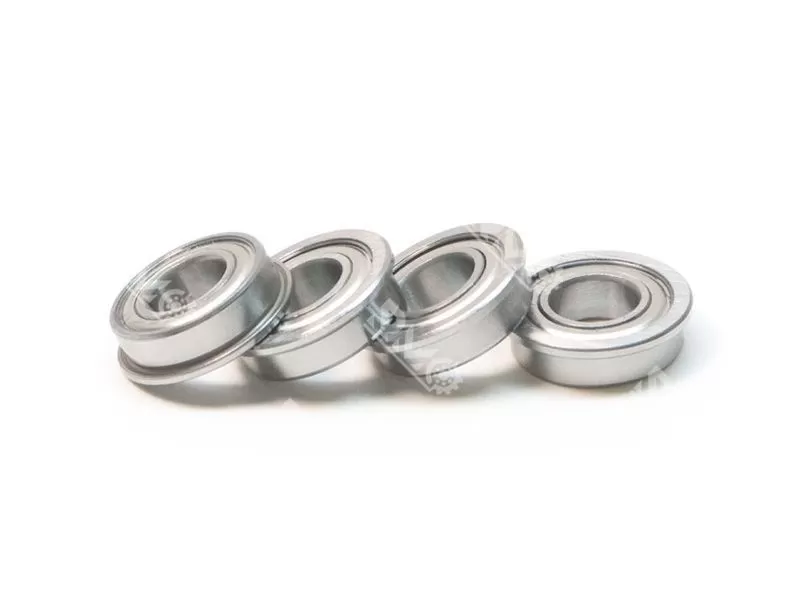

Deep Groove Ball Bearing

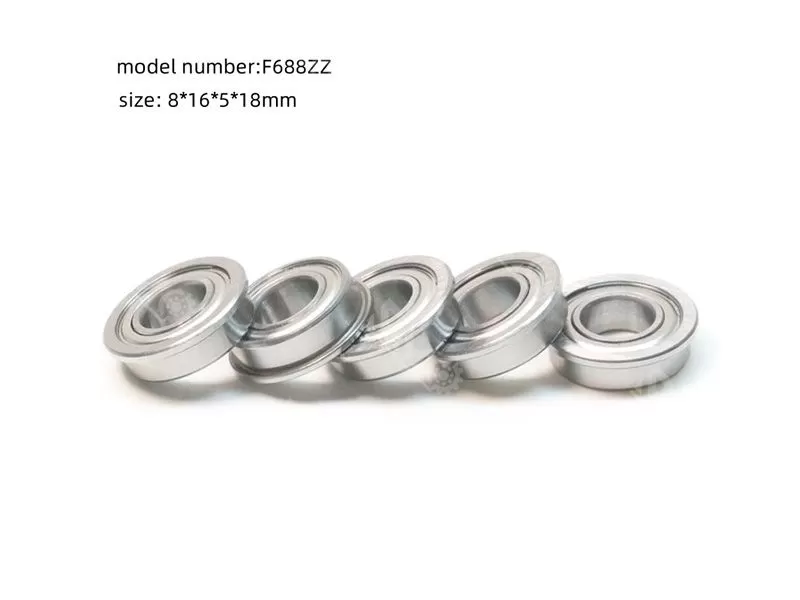

chrome steel Miniature Bearing F688ZZ F618/8 F688-2RS size 8x16x5mm
Specification
| Product Name | Deep groove ball bearing F688 F688ZZ F618/8 F688-2RS |
| Size | 8*16*5*18mm |
| material | Chrome steel.Gcr15 |
| Precision | P0 |
| Sealing | Open, Z, ZZ, RZ,2RZ,RS, 2RS |
| Service | OEM & ODM service |
| Delivery date | Normally ready goods and stock within 3-5 days |
| Payment terms | A:100% TT B: 30% T/T before production .70% before delivery. C:30% T/T in advance .70% against copy of B/L D:Paypal. |
| Application | Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
| Package | Industrial package or according to buyers' requirement |
| Details | Deep groove ball bearings are simple, easy to use, is the largest production volume, most widely used of a class of bearings. It is mainly used for a bear radial load, but also bear certain axial load. When the bearing radial clearance increased when the function with angular contact bearings can bear large axial load. |
| Special properties | 1. High accuracy 2. Low noise 3. Long life 4. Can be customized according to your needs 5. Can provide small & miniature standard and non-standard ball bearings. |
Related Products
| Bearings No. | ID(d*D*B)mm | Weight (KG) | Bearings No. | ID(d*D*B)mm | Weight (KG) |
| F682 | 2*5*2.3 | 0.001 | MF115 | 5*11*4 | 0.001 |
| F683 | 3*7*3 | 0.001 | MF106 | 6*10*3 | 0.001 |
| F684 | 4*8*3 | 0.001 | MF126 | 6*12*4 | 0.002 |
| F685 | 5*11*3 | 0.001 | MF117 | 7*11*3 | 0.002 |
| F686 | 6*13*5 | 0.001 | MF137 | 7*13*4 | 0.003 |
| F687 | 7*14*5 | 0.0023 | MF128 | 8*12*3.5 | 0.003 |
| F688 | 8*16*5 | 0.0045 | MF148 | 8*14*4 | 0.009 |
| F689 | 9*17*5 | 0.005 | F626ZZ | 6*19*6 | 0.002 |
| F692 | 2*6*3 | 0.001 | MF84ZZ | 4*8*3 | 0.02 |
| F693 | 3*8*4 | 0.002 | FR6ZZ | 9.525*22.225*7.142 | 0.006 |
| F694 | 4*11*4 | 0.003 | F605ZZ | 5*14*5 | 0.022 |
| F695 | 5*13*4 | 0.003 | MF74ZZ | 4*7*2.5 | 0.013 |
| F696 | 6*15*5 | 0.001 | F608ZZ | 8*22*5 | 0.024 |
| F697 | 7*17*5 | 0.001 | F606ZZ | 6*17*6 | 0.007 |
| F698 | 8*19*6 | 0.002 | F625ZZ | 5*16*5 | 0.005 |
| F699 | 9*20*6 | 0.002 | F624ZZ | 4*13*5 | 0.002 |
| MF52 | 2*5*2.5 | 0.0005 | F623ZZ | 3*10*4 | 0.023 |
| MF72 | 2*7*2.5 | 0.0005 | FR8ZZ | 12.7*28.575*7.938 | 00.025 |
| MF82 | 2*8*2.5 | 0.001 | F607 | 7*19*6 | 0.01 |
| MF63 | 3*6*2.5 | 0.001 | FR168 | 6.35*9.52*3.18 | 0.005 |
| MF104 | 3*8*2.5 | 0.001 | SFRW168ZZ | 3.175*9.525*2.778 | 0.007 |
| MF85 | 3*9*4 | 0.001 | F6801 | 12*21*5 | 0.036 |
| MF95 | 4*10*4 | 0.002 | F6202ZZ | 15*35*11 | 0.05 |
| MF105 | 5*8*2.5 | 0.0009 | F6800ZZ | 10*19*5 | 0.007 |
