How to Choose the Right Ball Bearing?

Dec. 17, 2024 Share:

Ball bearings are essential components in various machines and systems, helping to reduce friction and support rotational motion. From electric motors to automotive wheels and household appliances, ball bearings are found in countless applications. However, choosing the right ball bearing for a specific purpose can be a complex task, as the right selection depends on factors like load type, speed, material, and environmental conditions. This guide will walk you through the key factors to consider when selecting the ideal ball bearing for your application.


1. Understand Your Application Requirements


Before selecting a ball bearing, it is essential to understand the specifics of your application. The type of load, speed, and environment in which the bearing will operate directly impact the choice of bearing. Key factors to evaluate include:


  • Load Type: Ball bearings can handle different types of loads, including radial (perpendicular to the shaft) and axial (along the shaft). Determine the type of load the bearing will experience. For example, if the load is predominantly radial, a standard deep groove ball bearing will suffice. If the application involves high axial loads, consider a thrust bearing.

  • Operating Speed: Some bearings are designed for high-speed applications, while others are optimized for low-speed operations. High-speed bearings are usually constructed with precision to minimize friction, and are made of materials like ceramic or special steel alloys to handle the heat generated at higher speeds.

  • Temperature Range: High or low temperatures can significantly affect the performance of a bearing. Be sure to choose a bearing that can handle the temperature range of your operating environment. Some bearings are equipped with seals, shields, or special lubricants to protect them in extreme conditions.


2. Bearing Size and Dimensions


Choosing the right size bearing is crucial to ensure proper fit and performance. The bearing must fit snugly within the housing and have the correct internal clearance to support smooth motion. Consider the following when determining the size:


  • Inner Diameter (ID): The inner diameter is the size of the bore, or the hole in the center of the bearing, which determines how it fits onto the shaft. Make sure the inner diameter matches the shaft size to prevent wobbling or failure.

  • Outer Diameter (OD): The outer diameter should be compatible with the housing in which the bearing will be installed. It is essential for ensuring that the bearing fits properly and operates within the required tolerances.

  • Width: The width of the bearing, or thickness, also plays a role in performance and stability. A wider bearing offers more support but may increase the overall size of the assembly. Ensure that the width is appropriate for the available space and load requirements.

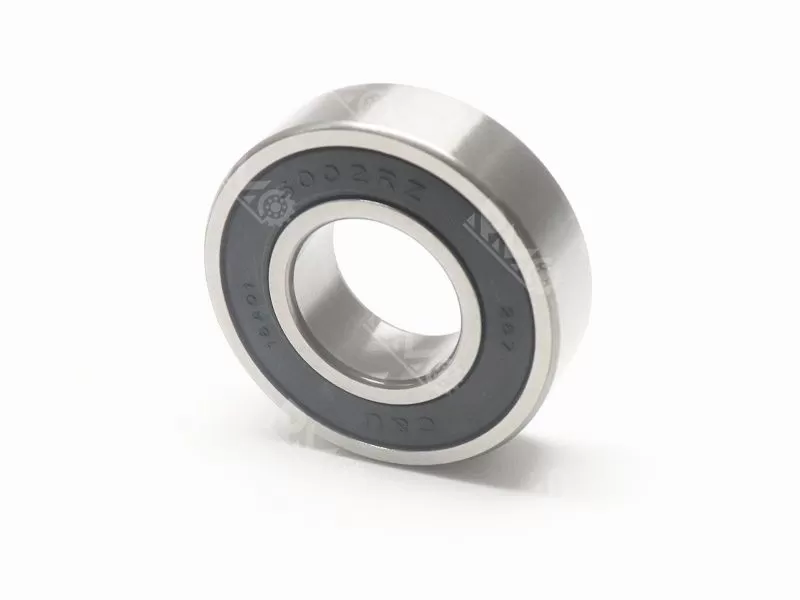

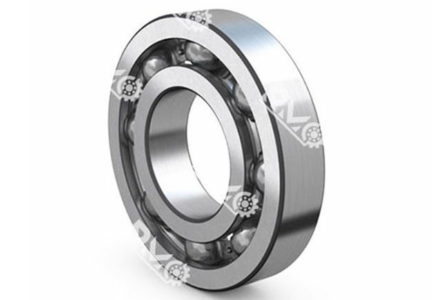

High Quality Ball Bearing

High Quality Ball Bearing

3. Bearing Materials and Durability


The material from which a ball bearing is made determines its strength, durability, and ability to withstand various operating conditions. Common materials used for ball bearings include:


  • Steel: Most ball bearings are made from high-carbon chromium steel, which provides a good balance of strength, wear resistance, and cost. However, they may not be ideal for applications involving high temperatures or harsh environments.

  • Stainless Steel: Stainless steel bearings are corrosion-resistant and are ideal for applications involving moisture, chemicals, or harsh conditions. They offer better resistance to rust and corrosion compared to standard steel bearings, but may be more expensive.

  • Ceramic: Ceramic ball bearings, made from materials such as silicon nitride, offer exceptional performance in high-speed, high-temperature, and clean environments. They are highly durable and can operate without lubrication in some cases. However, they are typically more expensive than steel bearings.

  • Plastic: For lightweight applications or those in corrosive environments, plastic bearings made from materials like PTFE or PEEK are ideal. They are less common but offer significant advantages in specialized fields like medical equipment and food processing.


4. Bearing Load Capacity and Performance


Bearings must be able to handle the load imposed on them without degrading in performance. The load capacity of a bearing depends on several factors, including the number of balls, the type of ball used, and the material of the races. Key considerations include:


  • Dynamic Load Rating: This indicates the bearing’s ability to withstand loads while in motion. It is important to choose a bearing with a dynamic load rating that exceeds the expected operating load to ensure smooth, long-term operation.

  • Static Load Rating: The static load rating is the maximum load the bearing can handle while stationary. Exceeding the static load rating may cause permanent damage to the bearing, leading to failure.

  • Fatigue Life: Fatigue life is the number of rotations a bearing can endure before it starts to wear out due to repetitive loading. Bearings with longer fatigue life are typically more expensive but offer better performance over time in high-demand applications.


5. Seals, Shields, and Lubrication


To protect the ball bearings from contaminants such as dust, dirt, or moisture, many come equipped with seals or shields. Proper lubrication is also essential for smooth operation and extended service life. When choosing a bearing, consider the following options:


  • Seals: Seals prevent dirt and moisture from entering the bearing, keeping it clean and lubricated. These are ideal for heavy-duty applications or when the bearing will be exposed to harsh environments. There are different types of seals, including rubber, felt, and metal seals, each with their own benefits.

  • Shields: Shields protect the bearing from external contaminants, but they do not provide a full seal. They allow for lower friction, which is ideal for high-speed applications. However, shields do not protect the bearing from contamination as effectively as seals.

  • Lubrication: Bearings must be properly lubricated to minimize friction and wear. Some bearings come pre-lubricated, while others require periodic maintenance. Depending on the operating conditions, you may need to choose between grease or oil lubrication, each offering different performance characteristics.

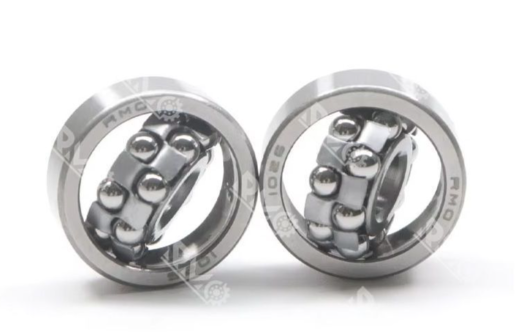

    Double Row Self-Aligning Ball Bearing

Double Row Self-Aligning Ball Bearing

6. Bearing Tolerance and Precision


Ball bearings come with varying levels of precision and tolerance. Tolerance refers to the allowable variation in the size and geometry of the bearing components. Bearings are often categorized into different grades, with higher-grade bearings offering tighter tolerances and higher precision. This is important for applications that require smooth and consistent operation, such as in machinery with high-speed rotation or delicate operations.


  • ABEC Ratings: The Annular Bearing Engineers’ Committee (ABEC) rating system is used to define bearing tolerance levels. Higher ABEC ratings (such as ABEC 5 or ABEC 7) indicate greater precision and less vibration, making them ideal for high-speed or high-precision applications.

  • ISO Standards: ISO 9001 and other industry standards define the tolerances and precision required for various bearing applications. For applications requiring the highest level of performance, select a bearing that adheres to these precision standards.


7. Price and Supplier Reputation


Cost is a significant factor when choosing a ball bearing, but it should not be the sole deciding factor. High-quality bearings can offer better performance and longevity, leading to cost savings over time. When evaluating suppliers, consider factors like:


  • Reputation: Choose a reputable supplier known for providing quality bearings. A reliable supplier can offer advice on the best bearing for your needs, provide warranties, and ensure you receive a genuine product.

  • Long-Term Value: Opt for bearings with longer service lives and warranties. Investing in quality components ensures that you won’t need frequent replacements, saving on long-term maintenance costs.


Conclusion


Choosing the right ball bearing for your application requires a clear understanding of your specific needs and operating conditions. By considering factors such as load type, speed, material, bearing size, and lubrication requirements, you can make an informed decision that ensures optimal performance and durability. Always balance cost with quality, and consider the long-term benefits of selecting high-quality, reliable bearings that can handle your application’s demands. By following this guide, you’ll be well on your way to selecting the perfect ball bearing for your needs.
