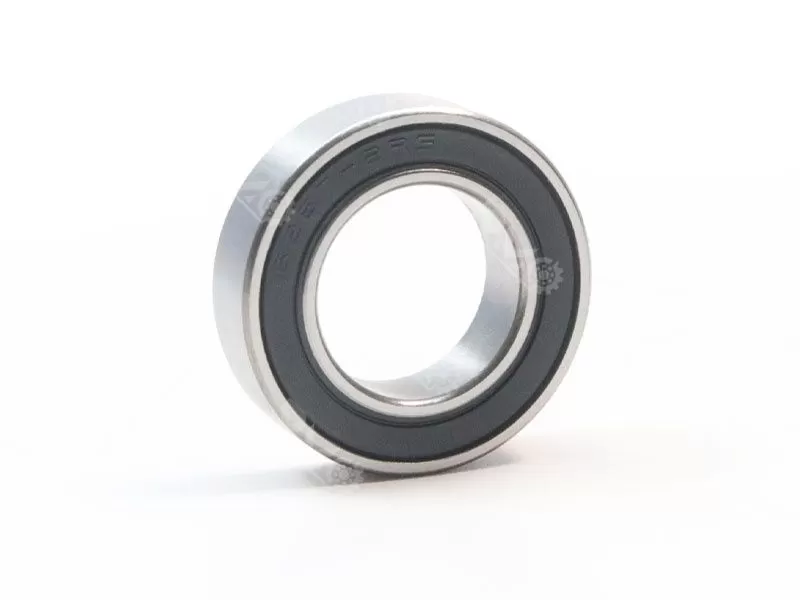

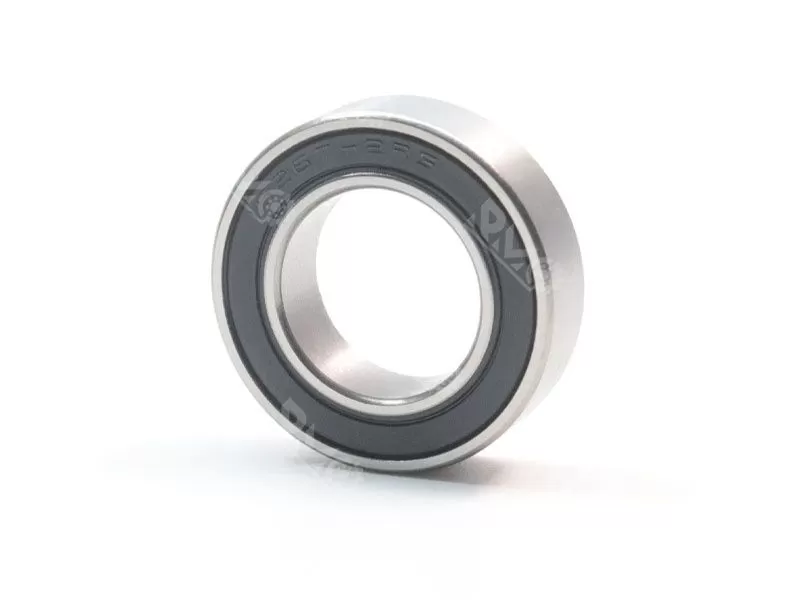

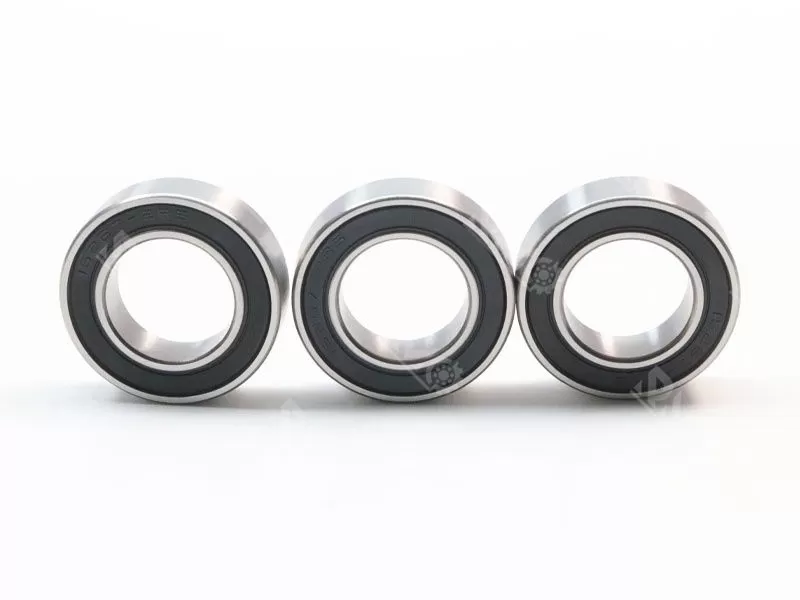

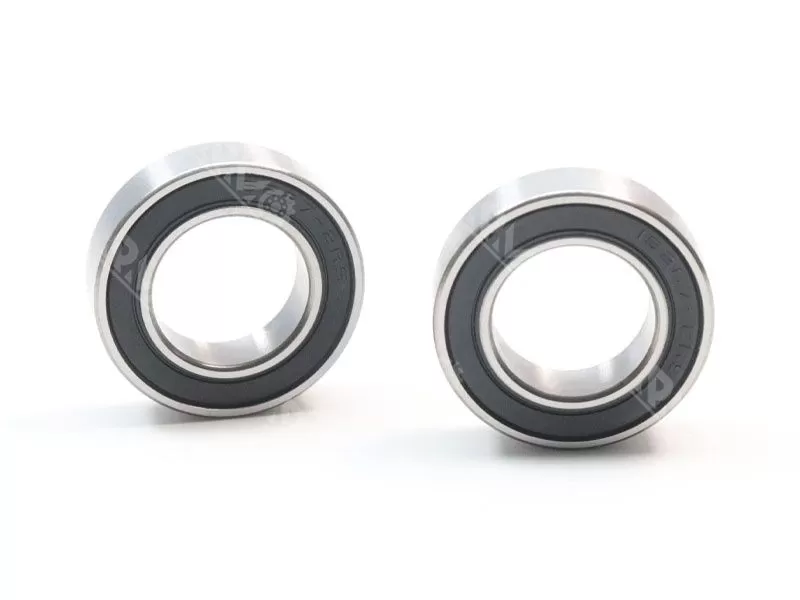

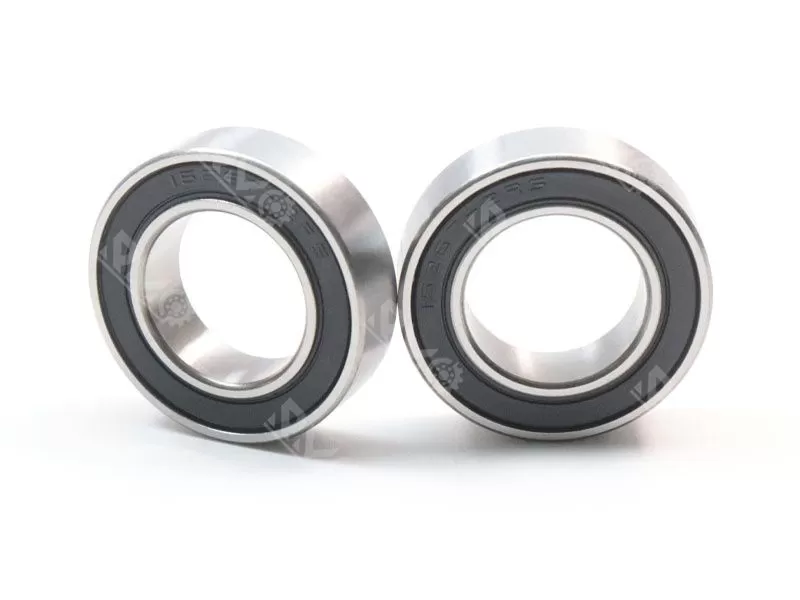

Bicycle bearing
The main function is to support the frame and the wheels, and allow the wheels to rotate freely. Applicable to front axle, rear axle, automatic transmission and other parts.
Model number: 15267 2RS

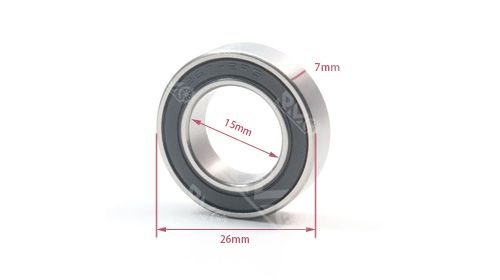

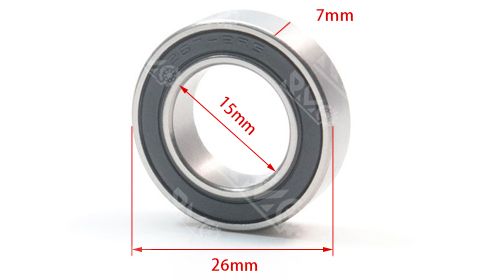

Size: 15x26x7mm
Materials: Gcr15.chrome steel
Weight: 0.013KG
Package: Plastic Tube/single box+Carton+Pallet
Specification
Service: OEM/ODM
Small order: accept
Shipping Port: GUANGZHOU, NINGBO, SHANGHAI
Payment: 100% T/T, or 30% T/T In Advance ,70% T/T After Finished Production
Deep groove ball bearing: consists of an outer ring, an inner ring, a group of steel balls and a group of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.
Use Application:
Deep groove ball bearings can be used in transmissions, instruments, motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls and so on.
Related Products
Bearings NO. | ID(d*D*B)mm | Weight (KG) | Bearings NO. | ID(d*D*B)mm | Weight (KG) |
12267RS | 12*26*7 | 0.0151 | 19307RS | 19*30*7 | 0.0234 |
15267RS | 15*26*7 | 0.0124 | 190537RS | 19.05*37*9 | 0.004 |
152610RS | 15*26*10 | 0.012 | 19317RS | 19*31*7 | 0.023 |
16257RS | 16*25*7 | 0.014 | 19379RS | 19*37*9 | 0.037 |
16287RS | 16*28*7 | 0.014 | 22317RS | 22*31*7 | 0.032 |
17287RS | 17*28*7 | 0.0131 | 22379RS | 22*37*9 | 0.037 |
163110RS | 16*31*10 | 0.0258 | 215317RS | 21.5*31*7 | 0.014 |
173110RS | 17*31*10 | 0.0254 | 24377RS | 24*37*7 | 0.019 |
6805RD | 25*37*6 | 0.02 | 24378RS | 24*37*8 | 0.0232 |
30406RS | 30*40*6 | 0.018 |
