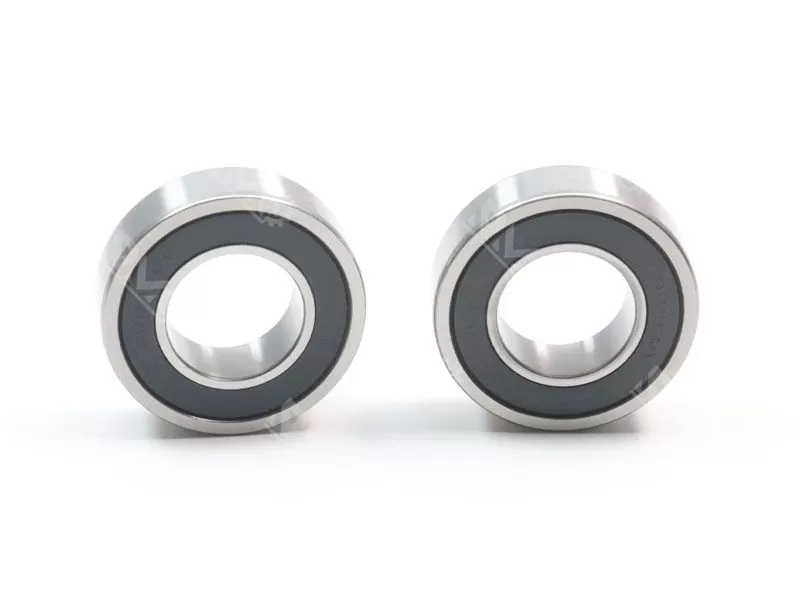

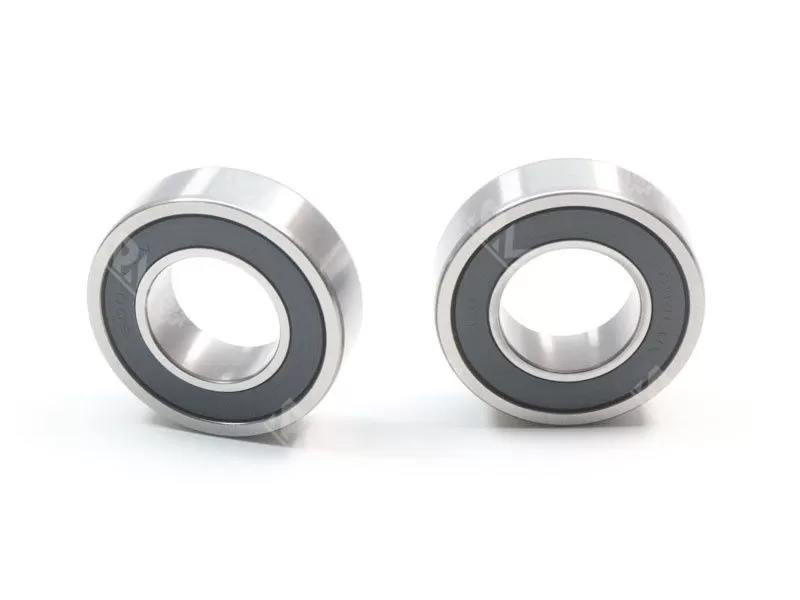

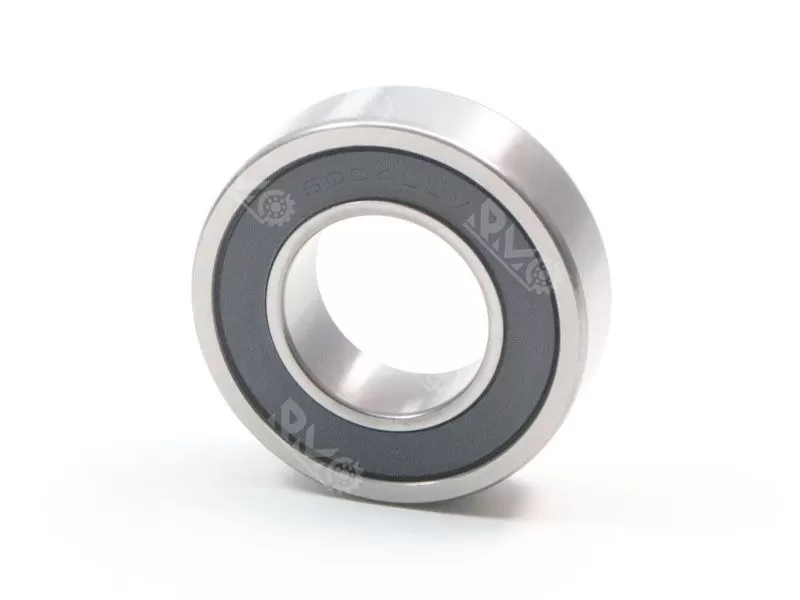

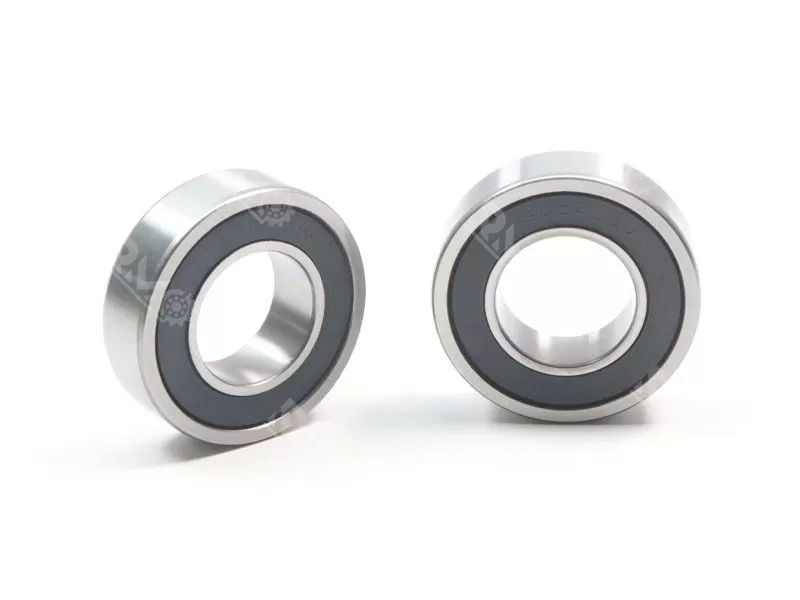

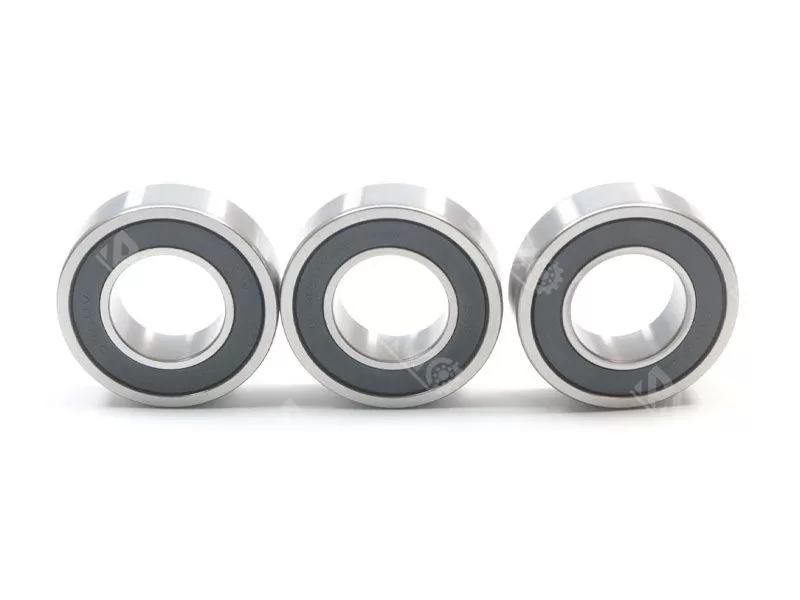

Product name: Deep groove ball bearing

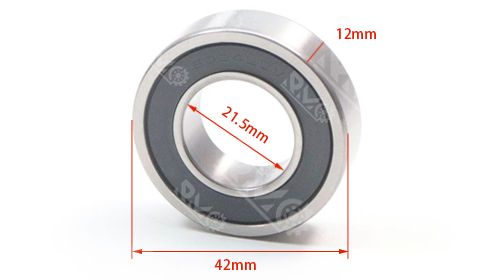

Inner diameter:10mm ~ 1320mm

Outer diameter: 30mm ~ 1600mm

Width: 9mm ~ 300mm

Function: Support rotating parts, reduce friction

Material: chrome steel,carbon steel,stainless steel

Internal clearances: C2 C0 C3 C4

Vibration and noise: Z1V1, Z2V2, Z3V3

The basic type of deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure is also divided into sealed and open two structures, open refers to the bearing does not have a sealed structure, sealed deep groove ball is divided into dust seal and oil seal. The dust seal cover material is steel plate stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is a contact oil seal, which can effectively prevent the leakage of grease in the bearing.

Applications: Deep groove ball bearings can be used in transmission, instrumentation, electric motors, household appliances, internal combustion engines, traffic vehicles, agricultural machinery, construction machinery, engineering machinery, roller skates, yo-yo balls and so on.

The processing forms of deep groove ball bearing parts are as follows:

1. multi-process processing: general bearing production needs 20 to 40 processes, more than 70.

2. forming processing: the working surface of the bearing parts are rotary forming surface, suitable for processing by forming method.

3. precision machining: most of the surface of bearing parts should be grinding, grinding size and geometric accuracy are in μm units.
